Frequency: 50Hz

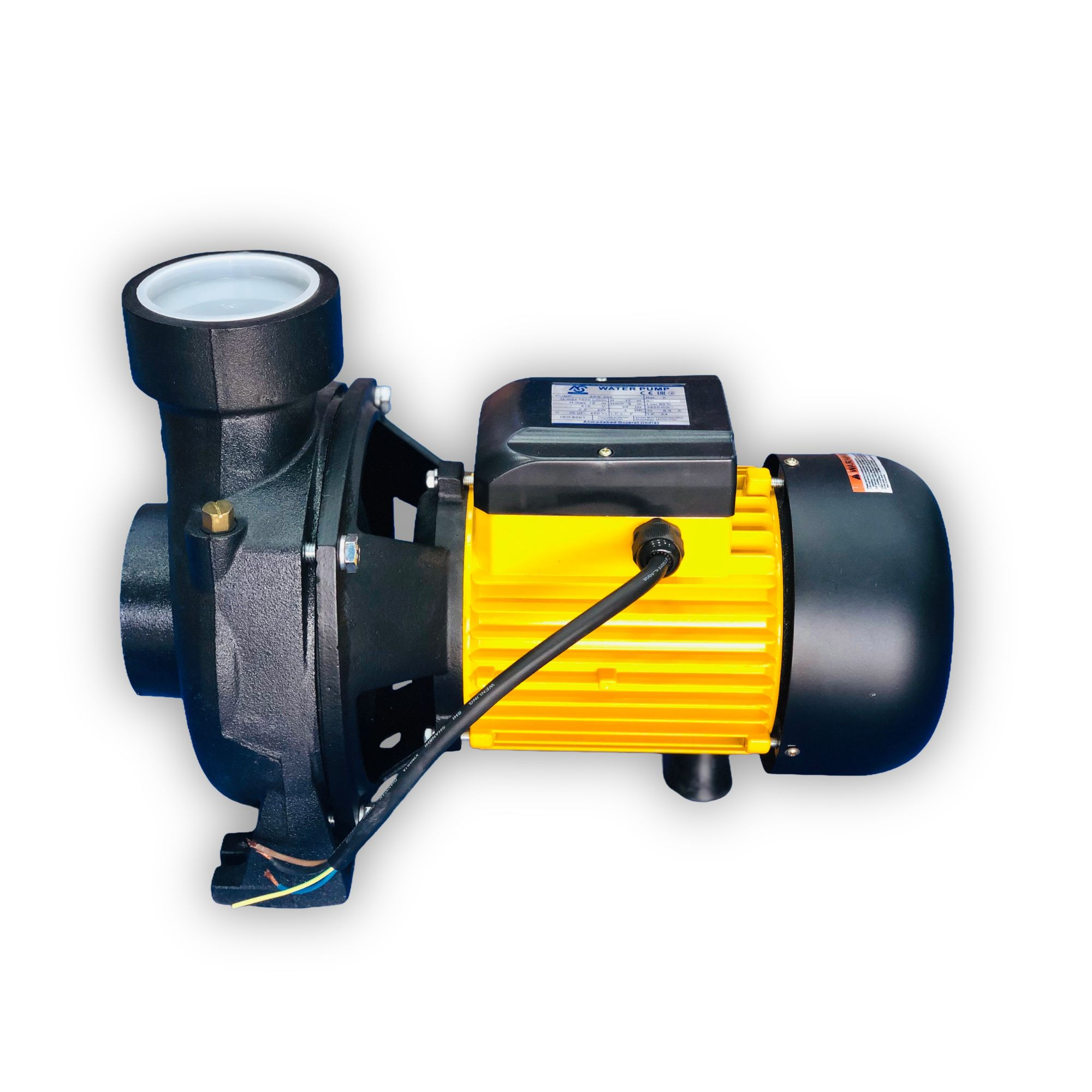

Model: APS-300

SKU: ACSONS-PUMP-APS300

Flow: 1000 L/Min

Head: 5 Meter - 19 Meter

Specifications:-

• Pump Type: Centrifugal Monoblock Pump

• Inlet / Outlet Size: 3 x 3 Inches

• Power Output: 3 HP / 2.2 kW

• Operating Voltage: 415 V (Three-Phase / 3Ph)

• Rated Current : 6.9 A

• Motor Speed : 2850 RPM (High-Efficiency Induction Motor)

• Capacitor Configuration: 35 µF - 450 VL

• Insulation Standard: Class F (High thermal resistance)

• Ingress Protection: IP X4 (Splash-proof and outdoor ready)

• Maximum Fluid Temperature : 60°C

• Quality Certifications: CE Certified, EAC Compliant, ISO 9001 Certified Factory

Application:

• Agricultural, Industries, Plant

• Irrigation of fields/farms

• Commercial water distribution

• Housing complexes

• Construction dewatering

• Booster water supply systems




Installation and Use: These pumps are ideal for pumping clean water and other chemically and mechanically non-aggressive liquids. Thanks to their robust design, they can be easily and conveniently used for a wide variety of applications in civil, agricultural, industrial, or general plant uses. Secure the pump on a level foundation in a well-ventilated space, prime the chamber completely with water before starting, and never run the pump dry.
