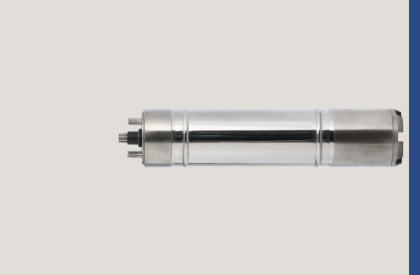

4″ Oil Lubricated Submersible Motor

• Revindable
• Upper & Lower Housing and morot base : Cast iron with nickel coating
• Stator shell : SS 304
• Motor shaft : SS 420
• Winding wire : Enameled Copper with insulation Class-B
• Degree of protection : IP 58
• Max oil temperature : 35°C
• Nos. of Start per Hour : Max 30 at regular intervals
• Voltage variation : +6% / -10% at rated voltage
• Coolant : Die electric non toxic
• Max depth immersion : 250mtr
• Motor cable length : 2mtr (3 core / 4 core)
• Coolant : Die electric non toxic
• Single phase motor Capacitor Start Capacitor Run (CSCR) & Capacitor Start and Run (CSR)

Versions

• Single Phase : 0.25 to 2.20 kW, 220-230 Volt / 50Hz
• Three Phase : 0.37 to 4.00 kW, 380-400-415 Volt / 50 Hz
• Single Phase : 0.37 to 2.20 kW, 230 Volt / 60 Hz
• Three Phase : 0.37 to 4.00 kW, 230-380-460 Volt / 60 Hz

Other voltage and frequencies can be supplied on demand
