Product Description
4″ Water Lubricated Submersible Motor has high efficiency electrical design which ensures lower operating cost & high quality.

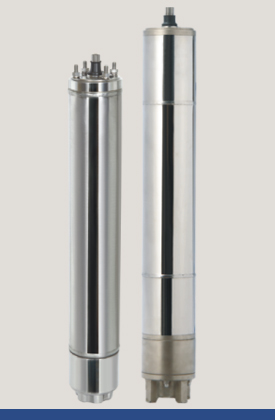

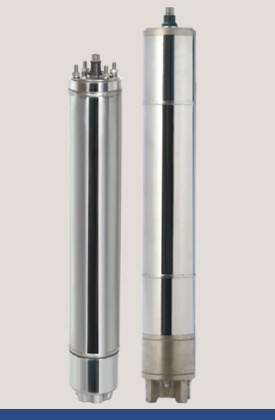

4″ Water Lubricated Submersible Motor
- Revindable
- Upper & Lower Housing and morot base : Cast iron with nickel coating
- Stator shell : SS 304
- Motor shaft : SS 420
- Winding wire : Poly propylene
- Shaft extension and coupling dimensiopns : As per “NEMA” Standards
- Bearing : Water lubricated radial and thrust bearing
- Degree of protection : IP 68
- Max water temperature : 35°C
- Nos. of Start per Hour : Max 30 at regular intervals
- Voltage variation : +6% / -10% at rated voltage
- Max depth immersion : 250mtr
- Motor cable length : 2mtr (3 core / 4 core)
- Coolant : Die electric non toxic
- Single phase motor Capacitor Start Capacitor Run (CSCR) & Capacitor Start and Run (CSR)
Versions
- Single Phase : 0.37 to 2.20 kW, 220-230 Volt / 50Hz
- Three Phase : 0.55 to 7.50 kW, 380-400-415 Volt / 50 Hz
- Single Phase : 0.37 to 2.20 kW, 230 Volt / 60 Hz
- Three Phase : 0.55 to 7.50 kW, 230-380-460 Volt / 60 Hz
Other voltage and frequencies can be supplied on demand
