- Suction, stage casing and discharge outlet : Stainless Steel
- Impeller : SS 304
- Sleeves : SS 304 reinforced with chromium
- Pump Shaft : SS 304
- Coupling dimensions : As per “NEMA” standards.
Operating Range :
| 6″ Radial Flow 50 Hz Head : 12 to 207 mtr Disch : 200 to 1100 LPM |
6″ Radial Flow 60 Hz Head : 17 to 175 mtr Disch : 240 to 1320 LPM |
- Immersion : 1 mtr. minimum
Maximum level of sand content : 50gm / m3
Description

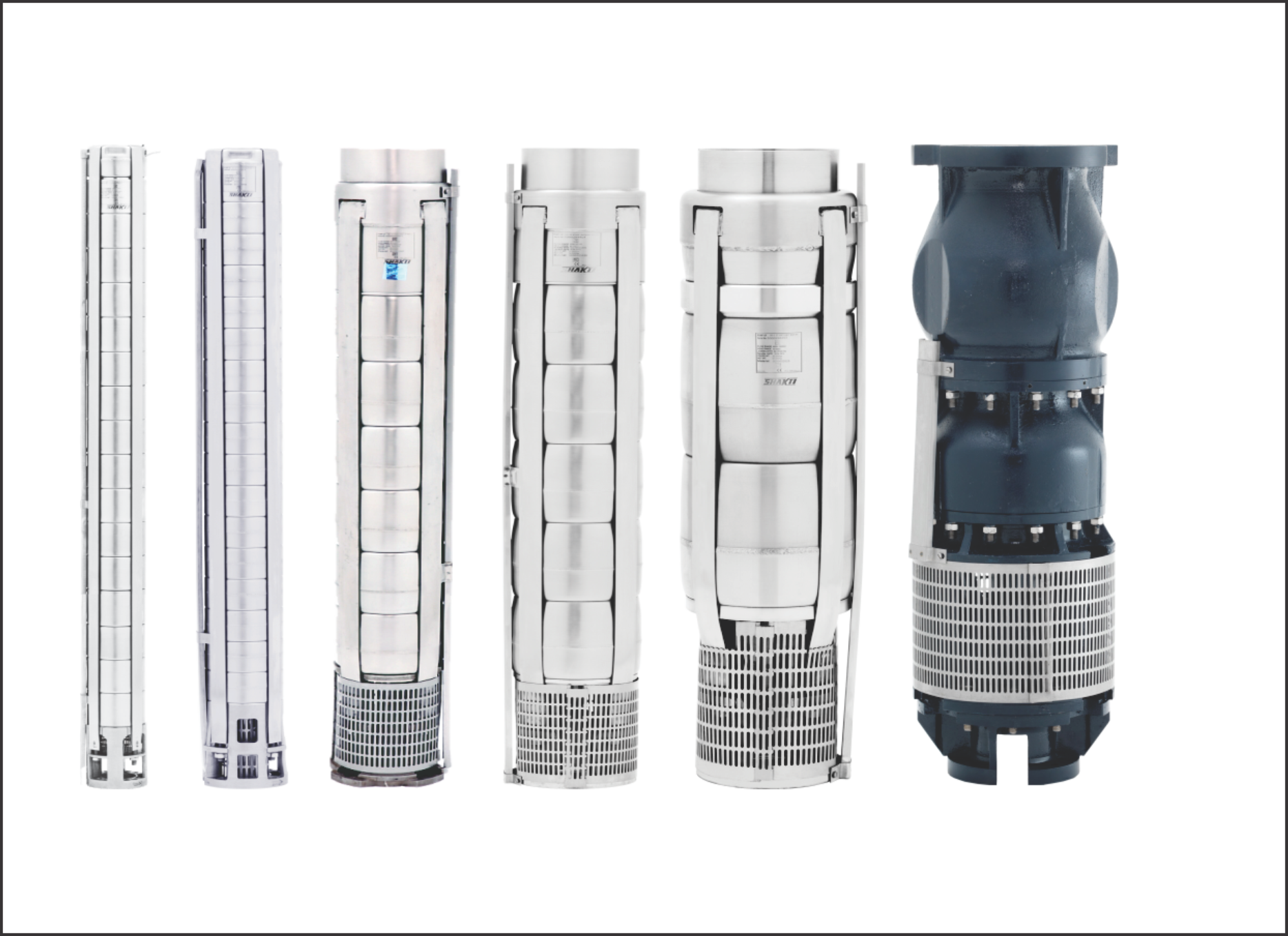

6″ Submersible Steel Submersible Pumps – Mixed Flow has high efficiency electrical design which ensures lower operating cost & high quality.
